Quick Details

  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: BONLE
  • Type: Insulator
  • Material: Composite Polymer, polymeric
  • Application: High Voltage
  • Rated Voltage: 33kv
  • Tensile Strength: 11KN
  • Rated voltage: 33kv

Packaging & Delivery

Packaging Details: WOODEN CASE OR EXPORT CARTON
Delivery Detail: 30-5DAYS

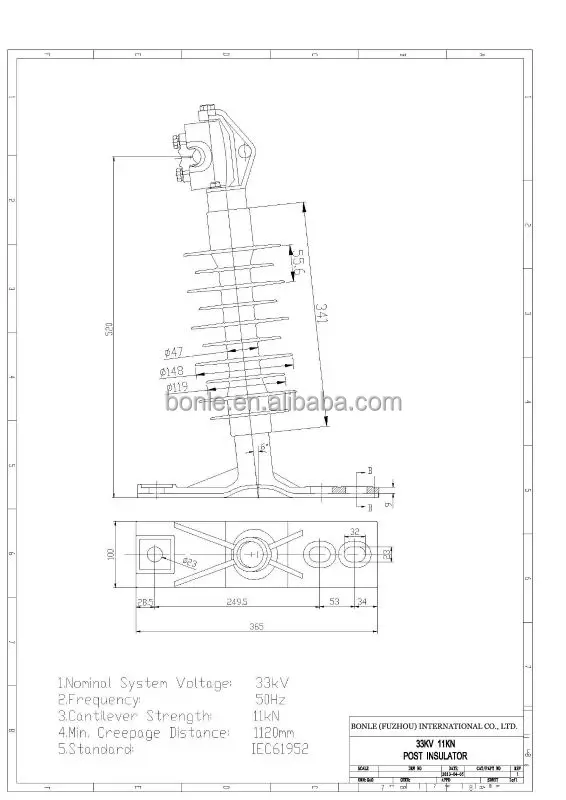

33KV Polymeric Post Insulator







Dimensions tolerance acc,to IEC61952
Selection Guide
(Line Voltage,kv)
Catalogue CodeSpecified Cantilever Load kNN of Sheds A

Length L

5 mm

Leakage distance mmDry arc distance mmPower frequency withstand 50HzLightning impul. withstand 1,2/50Weight~kg
121724364552Dry
kV
Wet
kV
posit kVnegat
.kV
      RL-FC-*10.02+136539016570651151606,5
      RL-FC-*8.43+24205852251101001501907,0
      RL-FC-*7.24+34807802851201101802157,5
      RL-FC-*6.35+45409753401501402352708,0
      RL-FC-*5.56+560011704001701552703008,5
      RL-FC-*5.07+666013654601801652853259,0
      RL-FC-*4.58+771515605202001853053559,5
      RL-FC-*4.29+8775175557522521034540510,0
NOTE:Once chosen the insulator that is the most suitable to the characteristics of the line on which you have to install it,in order to obtain the total length of the insulator(L),please select the kind of fitting end you have to use and refer to the following table:
Ground fittingLine fittingCode(2)Length
change(L)
Fitting GBFitting HCHCGB0
Fitting MFitting HCHCM+36
Fitting RFitting HCHCR-78
Fitting GBFitting BBGB+9
Fitting MFitting BBM+44
Fitting RFitting BBR-69
Fitting GBFitting CCGB-40
Fitting MFitting CCM-150
Fitting RFitting CCR-105
 Specified Cantilever Load SML-IEC61952
Max.Design Cantilever Load MDCL=65%of SCL
Specified Tensile Load(STL) 15kN
Max.design compression 15kN
Max.torsion Load 15daN*m
The SCL can be increased,please contact us.
The metal fittings can be in aluminium or galvanized steel
*Key to the catalogue numbers
*Key:ISI-FC-A(1)-A(2)
Example:ISI-FC-A4+3-HCGB
Please don't hesitate to contact us directly for obtaining possible explanations or different solutions.
These insulators are produced and tested according to IEC61952. It's possible to have all the other combinations.



 Composite Horizontal Line Post Insulator in Silicone Rubber Type RL-FC-*
Dimensions tolerance acc,to IEC61952
Selection Guide
(Line Voltage,kv)
Catalogue CodeSpecified Cantilever Load kNN of Sheds A

Length L

5 mm

Leakage distance mmDry arc distance mmPower frequency withstand 50HzLightning impul. withstand 1,2/50Weight~kg
72115150Dry
kV
Wet
kV
posit kVnegat
.kV
   RL-FC-*3,910+9840195063527022545049010,5
   RL-FC-*3,312+119552340100%31024551555011,5
   RL-FC-*3,014+131070273087035528557061512,5
   RL-FC-*2,716+151185312098540032062567013,5
   RL-FC-*2,418+1713003510110543535568073514,5
   RL-FC-*2,220+19141539001220475390100%80515,5
   RL-FC-*2,022+2115254290133552043082089016,5
   RL-FC-*1,824+2316404680145556047587094017,5
NOTE:Once chosen the insulator that is the most suitable to the characteristics of the line on which you have to install it,in order to obtain the total length of the insulator(L),please select the kind of fitting end you have to use and refer to the following table:
Ground fittingLine fittingCode(2)Length
change(L)
Fitting GBFitting HCHCGB0
Fitting MFitting HCHCM+36
Fitting RFitting HCHCR-78
Fitting GBFitting BBGB+9
Fitting MFitting BBM+44
Fitting RFitting BBR-69
Fitting GBFitting CCGB-40
Fitting MFitting CCM-150
Fitting RFitting CCR-105
 Specified Cantilever Load SML-IEC61952
Max.Design Cantilever Load  MDCL=65%of SCL
Specified Tensile Load(STL) 15kN
Max.design compression 15kN
Max.torsion Load 15daN*m
The SCL can be increased,please contact us.
The metal fittings can be in aluminium or galvanized steel
*Key to the catalogue numbers
*Key:ISI-FC-A(1)-A(2)
Example:ISI-FC-A16+15-HCGB
Please don‘t hesitate to contact us directly for obtaining possible explanations or different solutions.
These insulators are produced and tested according to IEC61952. It's possible to have all the other combinations.
